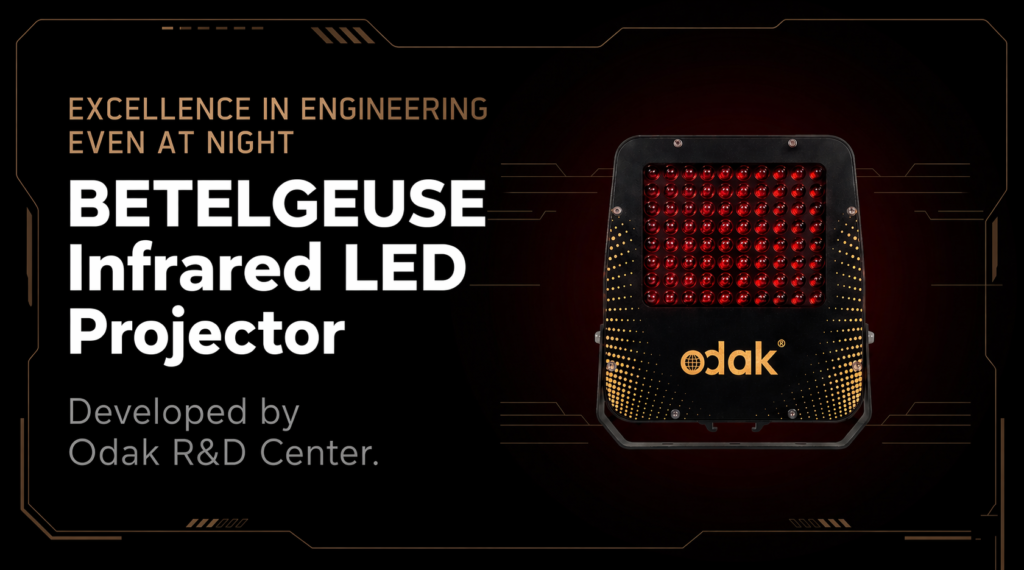

The Infrared LED Floodlight is an LED-based lighting device designed to support imaging systems. Its energy-efficient infrared light has a wavelength optimized for night vision, offering a cost-effective solution for nighttime imaging applications.
The luminaire body is designed to withstand harsh conditions and has IP66 and IK08 protection.
The light angle of 8° is ideal for speed detection, license plate reading, and other road detection systems. It is available in 8°, 17°, 20°, 25°, 30°, 45°, 60°, and 120° for a range of applications. It is suitable for ANPR and ALPR, with a light range of 20mt to 200mt.

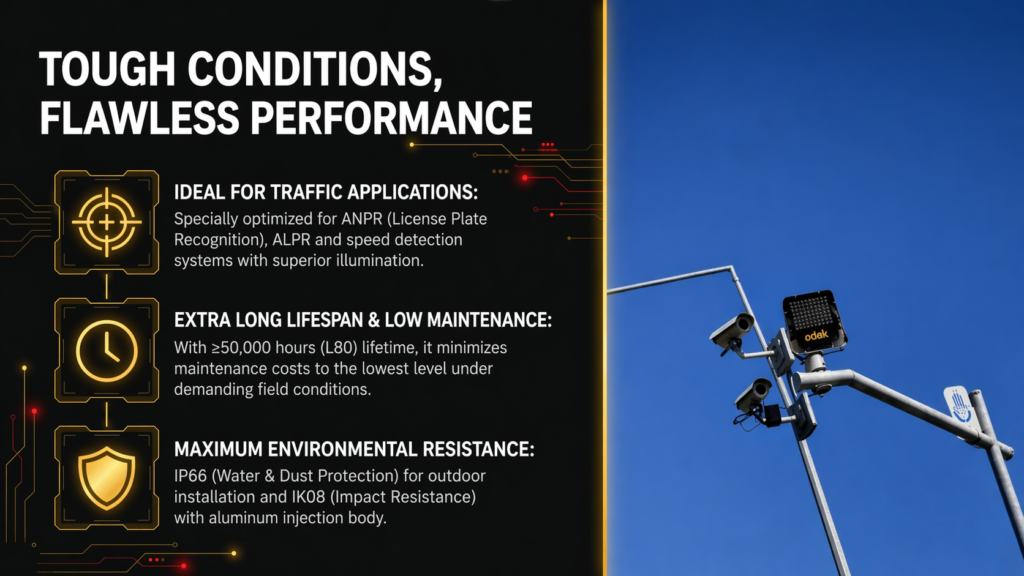

- Ideal for Traffic Application.
- Extra Long Lifetime with Very Low Maintenance.
- IP66 Enclosure for Outdoor Installation.
- Compact with integrated LED Light Source.
- Pulse range adjustable from 1.6K~30KHz.
- Independent or External trigger
- Support synchronized with video camera (NTSC&PAL)
- Super long range up to 400 m.
- Power: 80W/100W/125W/150W
- Input Voltage: 200-240 V AC 50/60 Hz
- Power Factor: >0,95
- Wavelength: 850 nm
- Infrared Emission: 27 W
- Light Angle: 8°, 17°, 25°, 40°, 45°, °60°, 90°, 110°
- IP Protection Class: IP 66
- Dimensions: 440x430x65 mm
- Weight: 7,5 kg
- Warranty Period: 3 Years
Imaging Systems
ANPR
It has a wide range of optical options for different application needs. Multiple optical options provide flexibility in lighting design.
8°
17°
25°
40°
45°
60°
90°
120°
- Body: Aluminum Injection
- Color Options: Gray RAL 7016 (Standard), Black RAL 9005 (optional)
- Front Cover: Tempered Glass
- Lens: PMMA
- Light Source: LED
- Impact Resistance: IK 08
- Total Harmonic Distortion: <%20
- CE Marking: Yes
- RoHS Compliance: Yes
- Lifetime: ≥30.000 Hours
- Throttling Options: 1-10V, TRIAC, DALI
- Operating Temperature: -25°/+55°C
- EN 60598-1
- EN 60598-2-5
- EN 60529
- IEC TR 62778
- LM 79-18
| Product Code | Power | Input Voltage | Infrared Emission | Wavelength | Dimensions | Boxed Product Dimensions | Weight | Boxed Product Weight |
|---|---|---|---|---|---|---|---|---|
| BTL-080SM-00082-850-7016 | 80 W | 200-240 V AC 50/60 Hz | 13 W | 850 nm | 440x430x65 mm | 460x540x110 mm | 7,5 kg | 8,5 kg |
| BTL-100SM-00082-850-7016 | 100 W | 200-240 V AC 50/60 Hz | 21 W | 850 nm | 440x430x65 mm | 460x540x110 mm | 7,5 kg | 8,5 kg |
| BTL-125SM-00082-850-7016 | 125 W | 200-240 V AC 50/60 Hz | 27 W | 850 nm | 440x430x65 mm | 460x540x110 mm | 7,5 kg | 8,5 kg |
| BTL-150SM-00082-850-7016 | 150 W | 200-240 V AC 50/60 Hz | 31 W | 850 nm | 440x430x65 mm | 460x540x110 mm | 7,5 kg | 8,5 kg |
