HYDRA Waterproof Luminaire 36 W

Waterproof Luminaires are used to protect lighting fixtures from water and humidity in indoor environments such as industrial kitchens, bathrooms, car-carpet washing workshops, baths, laundry rooms, and outdoor areas such as parking lots and gardens, where there is water and humidity. Waterproof luminaires are quick and easy to install thanks to their durable, slim and stylish design. As a direct alternative to traditional fluorescent luminaires, it provides significant energy savings

• Power:36 W ± 3%
• Input Voltage:200-240 V AC 50/60 HZ
• Power Factor:> 0.95
• Efficiency Factor:120 lm/W
• Luminous Flux: 4320 lm
• Color Temperature (CCT): 3000K-4000K-5000K-6500K
• Color Rendering Index (CRI): >80
• IP Protection Class: IP 65-IP 66 (Optional)

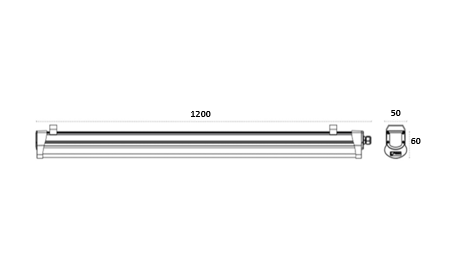

• Dimensions: 50X60X1200 mm
• Weight: 0.65kg
• Warranty Period: 5 years

It has a large number of optical options for different usage area. Multiple optical options provide flexibility in lighting design.

Product Code	Power	Input Voltage	CCT	Luminous Flux	Effectiveness Factor	Light angle	Dimensions	Weight
HYD-018SM-01101-830-0000	18W	200-240 V AC 50/60 HZ	3000 K	1908 lm	106 lm/W	110°	50X60X600 mm	0,4 kg
HYD-036SM-01101-830-0000	36W	200-240 V AC 50/60 HZ	3000 K	3816 lm	106 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-044SM-01101-830-0000	44W	200-240 V AC 50/60 HZ	3000 K	4488 lm	102 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-065SM-01101-830-0000	65W	200-240 V AC 50/60 HZ	3000 K	6630 lm	102 lm/W	110°	50X60X1500 mm	0.85 kg
HYD-018SM-01101-840-0000	18W	200-240 V AC 50/60 HZ	4000K	1980 lm	110 lm/W	110°	50X60X600 mm	0,4 kg
HYD-036SM-01101-840-0000	36W	200-240 V AC 50/60 HZ	4000K	3960 lm	110 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-044SM-01101-840-0000	44W	200-240 V AC 50/60 HZ	4000K	4664 lm	106 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-065SM-01101-840-0000	65W	200-240 V AC 50/60 HZ	4000K	7540 lm	116 lm/W	110°	50X60X1500 mm	0.85 kg
HYD-018SM-01101-850-0000	18W	200-240 V AC 50/60 HZ	5000K	2160 lm	120 lm/W	110°	50X60X600 mm	0,4 kg
HYD-036SM-01101-850-0000	36W	200-240 V AC 50/60 HZ	5000K	4320 lm	120 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-044SM-01101-850-0000	44W	200-240 V AC 50/60 HZ	5000K	5104 lm	116 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-065SM-01101-850-0000	65W	200-240 V AC 50/60 HZ	5000K	7540 lm	116 lm/W	110°	50X60X1500 mm	0.85 kg
HYD-018SM-01101-865-0000	18W	200-240 V AC 50/60 HZ	6500K	2160 lm	120 lm/W	110°	50X60X600 mm	0,4 kg
HYD-036SM-01101-865-0000	36W	200-240 V AC 50/60 HZ	6500K	4320 lm	120 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-044SM-01101-865-0000	44W	200-240 V AC 50/60 HZ	6500K	5104 lm	116 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-065SM-01101-865-0000	65W	200-240 V AC 50/60 HZ	6500K	7540 lm	116 lm/W	110°	50X60X1500 mm	0.85 kg

Product Code	Power	Input Voltage	CCT	Luminous Flux	Effectiveness Factor	Light angle	Dimensions	Weight
HYD-018SM-01101-830-02E3	18W	200-240 V AC 50/60 HZ	3000 K	1908 lm	106 lm/W	110°	50X60X600 mm	0,4 kg
HYD-036SM-01101-830-02E3	36W	200-240 V AC 50/60 HZ	3000 K	3816 lm	106 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-044SM-01101-830-02E3	44W	200-240 V AC 50/60 HZ	3000 K	4488 lm	102 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-065SM-01101-830-02E3	65W	200-240 V AC 50/60 HZ	3000 K	6630 lm	102 lm/W	110°	50X60X1500 mm	0.85 kg
HYD-018SM-01101-840-02E3	18W	200-240 V AC 50/60 HZ	4000K	1980 lm	110 lm/W	110°	50X60X600 mm	0,4 kg
HYD-036SM-01101-840-02E3	36W	200-240 V AC 50/60 HZ	4000K	3960 lm	110 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-044SM-01101-840-02E3	44W	200-240 V AC 50/60 HZ	4000K	4664 lm	106 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-065SM-01101-840-02E3	65W	200-240 V AC 50/60 HZ	4000K	7540 lm	116 lm/W	110°	50X60X1500 mm	0.85 kg
HYD-018SM-01101-850-02E3	18W	200-240 V AC 50/60 HZ	5000K	2160 lm	120 lm/W	110°	50X60X600 mm	0,4 kg
HYD-036SM-01101-850-02E3	36W	200-240 V AC 50/60 HZ	5000K	4320 lm	120 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-044SM-01101-850-02E3	44W	200-240 V AC 50/60 HZ	5000K	5104 lm	116 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-065SM-01101-850-02E3	65W	200-240 V AC 50/60 HZ	5000K	7540 lm	116 lm/W	110°	50X60X1500 mm	0.85 kg
HYD-018SM-01101-865-02E3	18W	200-240 V AC 50/60 HZ	6500K	2160 lm	120 lm/W	110°	50X60X600 mm	0,4 kg
HYD-036SM-01101-865-02E3	36W	200-240 V AC 50/60 HZ	6500K	4320 lm	120 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-044SM-01101-865-02E3	44W	200-240 V AC 50/60 HZ	6500K	5104 lm	116 lm/W	110°	50X60X1200 mm	0.65 kg
HYD-065SM-01101-865-02E3	65W	200-240 V AC 50/60 HZ	6500K	7540 lm	116 lm/W	110°	50X60X1500 mm	0.85 kg
