Dialight’s LED High Bay sets the industry standard with energy efficiency and durability for the longest-lasting performance in a wide range of industrial applications including Manufacturing, Power Generation, Water and Wastewater, Pulp and Paper, Metals and Mining, Chemical and Petrochemical and Oil and Gas. Featuring Dialight’s purpose-built power supply for superb reliability, the Dialight LED High Bay offers up to a decade of worry-free, low maintenance lighting, even in the harshest environments.

Vigilant® LED High Bay Fixture
Industrial Applications

Reliant™ LED High Bay – AMERICAS
Non-Hazardous

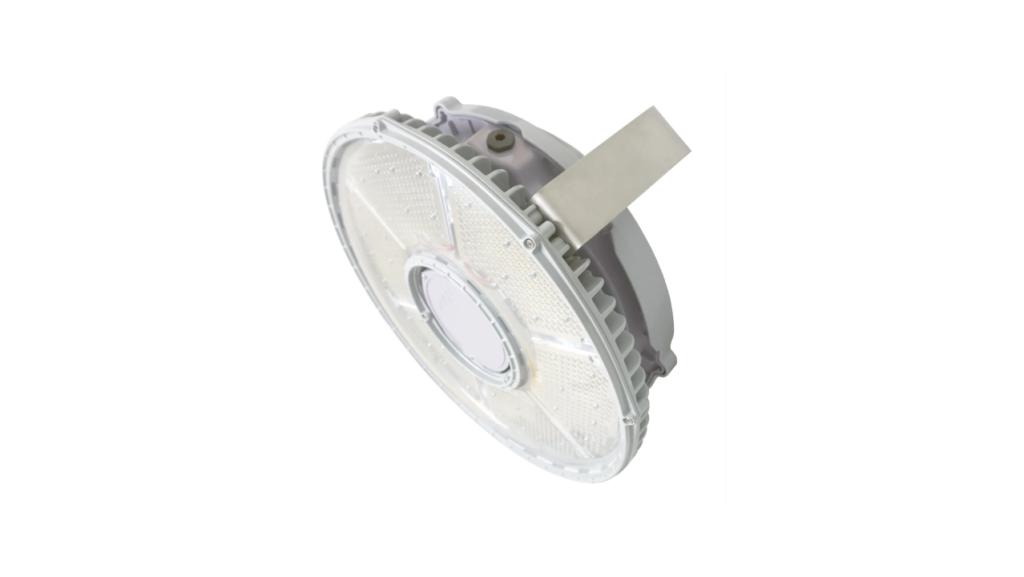

Reliant™ LED High Bay – EMEA & APAC
Non-Hazardous

DuroSite® LED High Bay Fixture
Industrial Applications

Vigilant® LED High Output High Bay – Low Profile
Non-Hazardous
Dialight’s LED Area Light delivers class-leading energy efficiency, functionality and dependability for superior performance in a wide range of applications in the most demanding environments. Designed around Dialight’s exclusive purpose-built power supply for long lasting reliability, the Dialight Area Lighting provides low maintenance fixtures you can count on with unmatched visual clarity for maximum savings and safety. Dialight offers both non-hazardous and hazardous area lights.

Non-Hazardous
- UL 1598/A, CSA, CE, ENEC, RCM, NOM
- 2,800 – 9,000 lumens
- Up to 143 lm/W
- 100-277 VAC, 120-250 VDC
- Up to 30′ (9m) Mounting Height
- 10 year warranty

Non-Hazardous
- UL 1598/A, CSA
- 2,200-7,200 lumens
- Up to 111 lm/W
- 347-480 VAC or 24-48 VDC
- Up to 25′ (7.5m) Mounting Height
- 5 year warranty

Vigilant® LED Area Light – Battery Backup
Non-Hazardous
- UL 1598/A, UL 924, CSA
- 2,800-9,000 lumens
- Up to 128 lm/W
- 120-277 VAC, 50/60Hz
- Up to 25′ (7.5m) Mounting Height
- 10 year warranty

Non-Hazardous
- UL 1598/A, CE, CSA, ENEC, RCM
- 6,700-7,300 lumens
- Up to 114 lm/W
- 100-277 VAC, 120-250 VDC
- 10′ (3m) Mounting Height
- 10 year warranty
Designed to replace antiquated and failure-prone fluorescent fixtures, Dialight’s LED Linear portfolio offers rugged, long-life, solid-state designs that resist shock and vibration to eliminate the cost and hassle of lighting maintenance, including the storage and disposal of delicate fluorescent tubes. Our LED linear portfolio provides options to suit your every need, including our lightweight Low Profile/Top Conduit Linear, our hazardous range Glass Reinforced Polyester (GRP) Linear, Class I, Division 1 Linear, our Battery Backup Linear, and our NSF Linear.

Vigilant® LED Linear – Low Profile/Top Conduit
Non-Hazardous
- UL 1598/A, CSA, CE, ENEC, RCM
- 4,200-9,600 lumens
- Up to 139 lm/W
- 100-277 VAC / 120-250 VDC
- Up to 30′ (9m) mounting height
- 10 year warranty

DuroSite® LED Linear – Low Profile/Top Conduit
Non-Hazardous
- UL 1598/A, CE, CSA
- 3,300-7,900 lumens
- Up to 133 lm/W
- 100-277 VAC
- Up to 20′ (6m) mounting height
- 5 year warranty

Vigilant® Glass Reinforced Polyester (GRP) LED Linear
Non-Hazardous
- CE, RCM
- Up to 2,785 & 5,750 (nominal) lumen outputs
- Up to 123 lm/W
- 100-277 VAC/120-250 VDC, 230/240 VAC (emergency)
- DALI 1.0/2.0 standard
- 10 year warranty

SafeSite® LED Battery Backup Linear
Non-Hazardous
- UL 1598/A, UL 924, CSA
- 7,000 lumens
- Up to 82 lm/W
- 120-277 VAC
- Up to 20′ (6m) mounting height
- 5 year warranty (excluding batteries)

SafeSite® LED Class I, Div. 1 Linear
Non-Hazardous
- NSF, UL 1598 (wet location), cULus
- 5,000 – 20,000 lumens (FBL); 8,000 – 16,000 lumens (PLL)
- Up to 131 lm/W (FBL); 133 lm/W (PLL)
- 120-277 VAC
- Up to 30′ (9m) mounting height
- 5 year warranty
The standard in high-efficient indoor and outdoor site illumination, Dialight’s LED Floodlights consume at least 50% less energy than traditional HID lighting sources to drastically reduce electricity costs while greatly reducing carbon emissions. With every product L70 rated for over 100,000 hours and backed by our exclusive 10-year warranty, Dialight’s LED Floodlights virtually eliminate lighting maintenance for over a decade – a crucial advantage particularly for hard-to-reach locations. Delivering cutting-edge performance, dependability and outstanding visibility, our LED Floodlight portfolio offers industry-leading technology with a fast ROI.

Non-Hazardous
- UL 1598/A, CSA, NOM
- 36,000 – 65,000 lumens
- Up to 160 lm/W
- 120-277VAC / 120-250VDC 347-480 VAC
- Up to 130′ (40m) Mounting Height
- 10 year warranty
Ideal for illuminating walkways, stairwells, platforms, tunnels, subways and exit routes, the Dialight LED Wallpack/Bulkhead Light fixture is designed to enhance facility safety with reliable, maintenance-free pathway lighting. Offering a low-profile, rugged design for maximum durability and shock, vibration and vandalism resistance, this high-efficiency fixture is available in 11, 22 and 34-watt models, while our flush, angle and adjustable mounts, as well as recessed housing options, enable a wide range of applications. Emergency exit and directional signage lens kits are available, along with red and green LED options to help guide personnel to safe egress. Every Wallpack product is IP66/67 certified for moisture resistance, carries an L70 rating of over 100,000 hours and boasts a wide operating temperature from -40°F up to 140°F. SafeSite hazardous location certified models offer exceptional safety for use in volatile environments, including oil, gas and chemical facilities.

Non-Hazardous
- CE, RCM, ENEC
- 3,000 & 6,500 lumens
- Up to 149 lm/W
- 100-277 VAC, 120-250 VDC (Battery Back-up models: 110/120 VAC, 230/240 VAC)
- 10 year warranty

Non-Hazardous
- UL 1598, CSA, DLC Premium
- 10,400-15,600 lumens
- Up to 130 lm/W
- 120-277 VAC
- 5 Year Warranty

Vigilant® LED Bulkhead – Conveyor Light
Non-Hazardous
- CE, RCM, ENEC, UKCA
- 2,100 – 6,400 lumens
- Up to 149 lm/W
- 100-277 VAC, 120-250 VDC (Battery Back-up models: 110/120 VAC, 230/240 VAC)
- 10 Year Warranty
The standard in high-efficient outdoor site illumination, Dialight’s LED Streetlights consume at least 50% less energy than traditional HID lighting sources to drastically reduce electricity costs while greatly reducing carbon emissions. With every product L70 rated for over 100,000 hours and backed by our exclusive 10-year warranty, Dialight’s LED Streetlights virtually eliminate lighting maintenance for over a decade. Delivering cutting-edge performance, dependability and outstanding visibility, our LED Streetlight range offers industry-leading technology with a fast ROI.
