URSA-M 50W Solar Lighting System

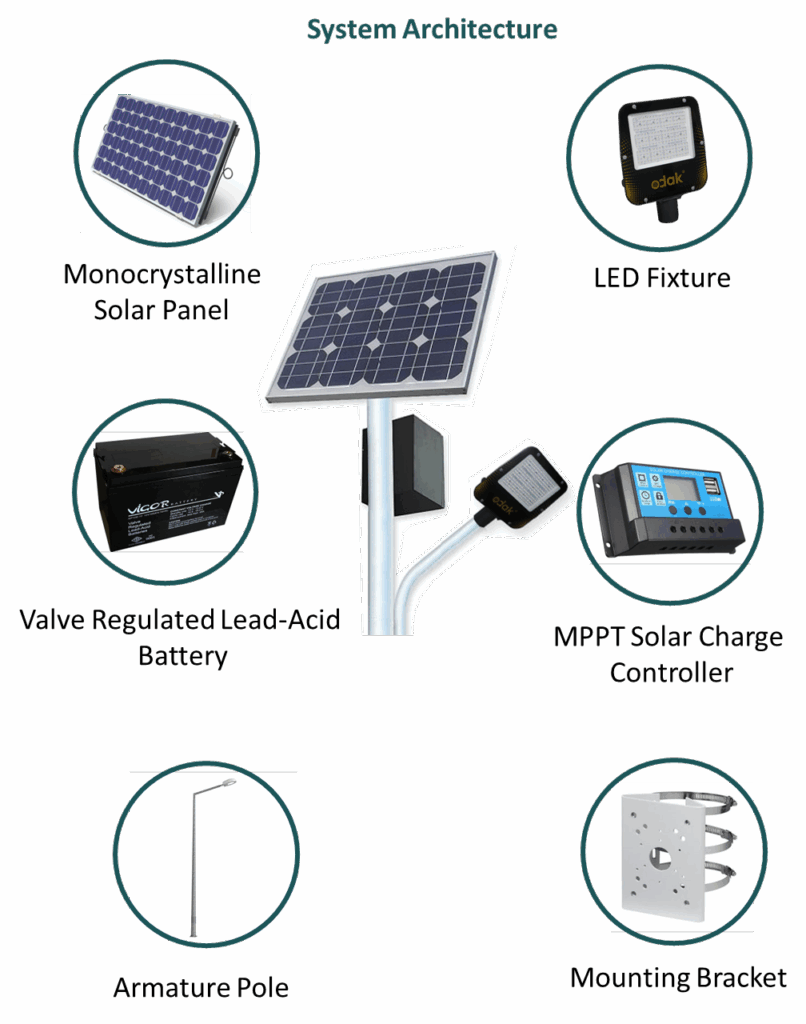

With Solar Lighting Systems, street, park, beachside and garden lighting projects are realized by placing solar energy panels and batteries to store the energy produced during the day.

In Solar System lighting projects, the working voltage is usually designed as 12V or 24V. Because batteries and solar panels are generally preferred and produced at these voltages. Using MPPT (maximum power point monitoring) solar charge controller to operate the solar powered systems in accordance with the changing seasons and sunshine conditions, to prevent the batteries from being discharged when the solar panel does not produce energy, to charge the batteries optimally, to prevent the batteries from over-discharge and to use them longer. required. Although these devices are expensive compared to PWM chargers, they are much more efficient devices when cost/benefit is considered. Monocrystalline solar panels are preferred in our solar powered lighting systems. As for the battery, Deep Cycle Gel Battery or Lithium Phosphate batteries are recommended. In our recommendation systems, the most advanced devices and technologies preferred in the sector are preferred and Mono crystal solar panels varying from 165W to 330W and systems with 30W, 40W, 50W LED lighting power are recommended according to the desired illuminance value.

• Power: 50W
• Input Voltage: 24V DC
• Efficacy: >130 lm/W
• Total Lumens: 6500 lm
• Optic : Asymmetric
• Color Temperature (CCT): 2700K – 6500K
• (CRI): •> 70
• IP Class: IP 66
• Dimensions: 466.8×174.8
• Warranty Period: 3 Year

It has a large number of optical options for different application needs. Multiple optical options provide flexibility in lighting design.

Product Code	Power	Input Voltage	CCT	Luminous Flux	Light Angle	Dimensions
URS-030M-ASY12-850	30W	24V DC	2700K – 6500K	4200lm	ASM.	281x385x96
URS-040M-ASY12-850	40W	24V DC	2700K – 6500K	5600lm	ASM.	332x440x96
